USB 3.0 Graphic Docking with Mounting Bracket For ProAV System
| Attribute | Value |
|---|
| Materials | Oxidation Grey Or Silvery |
The MSLFORCE OEM wall-mounted USB3.0 Graphic Docking Dual 4K@60hz for ProAV Systemand combined with MSLFORCE OEM innovative USB-C Desk Socket are designed for conference systems or huddle room use in ProAV system setups. This is a USB3.2 Gen2 Female host designed specifically for professional AV configurations.
The USB 3.0 TYPE-A Graphic docking station solution is engineered for professional environments including conference rooms, meeting halls, control centers, and educational facilities. Featuring a modular aluminum enclosure, the dock is built for permanent installation, ensuring a clean, secure, and organized workspace.
This USB3.0 Graphic Docking is also compatible with USB3.0 TYPE-C, USB3.1 TYPE-C, and USB3.2 TYPE-C connections.
Key Features

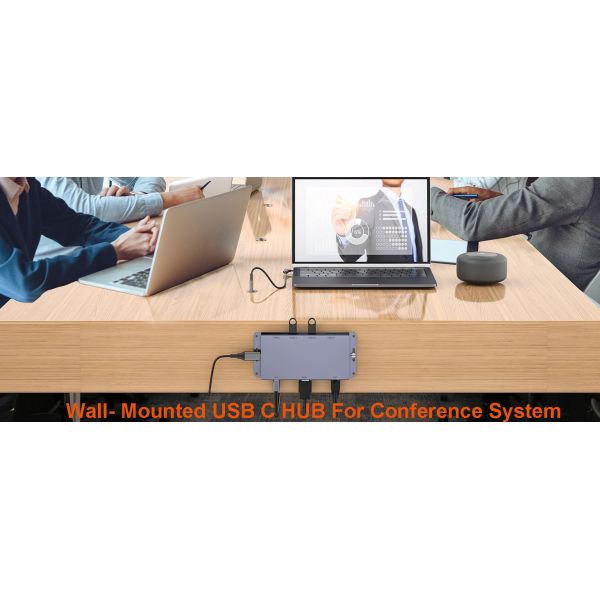

- Wall-Mount Design:Pre-drilled flanges allow easy installation on walls, under desks, podiums, or rack systems, reducing cable clutter and improving cable management.
- Multiple Ports Extendercombines cutting-edge DisplayLink technology with robust, user-friendly designs tailored for USB-C and USB-A Laptops and Computers:
- 1 × USB 3.0 Type-A (10Gbps)
- 1 × USB 3.0 Type-C (10Gbps)
- 2 × USB 3.0 Type-A (5Gbps)
- 2 × USB 2.0 Type-A (480Mbps)
- 2 × HDMI port (4K@60Hz) for video output
- 1 × Type-C PD input for external 20V/5A max power delivery
- 1 × RJ45 Wired Ethernet Port (1000Mbps)
- Host Port:USB3.2 Gen2 Female design allows flexible connection to laptops or host devices via USB-C to USB-C Cable, ideal for dynamic environments.

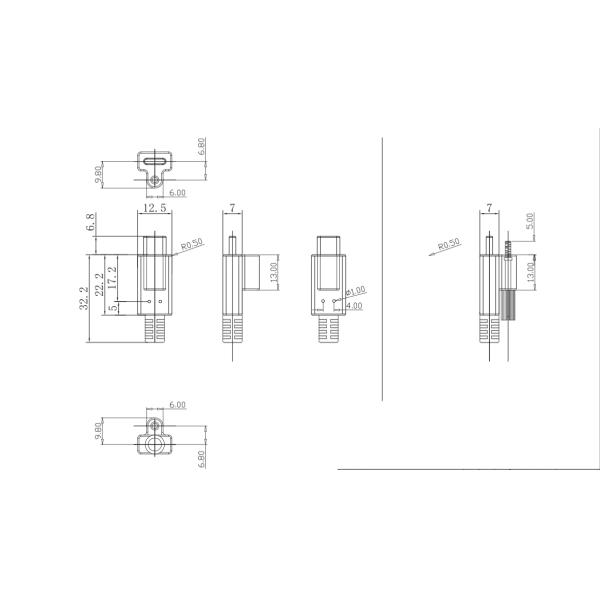

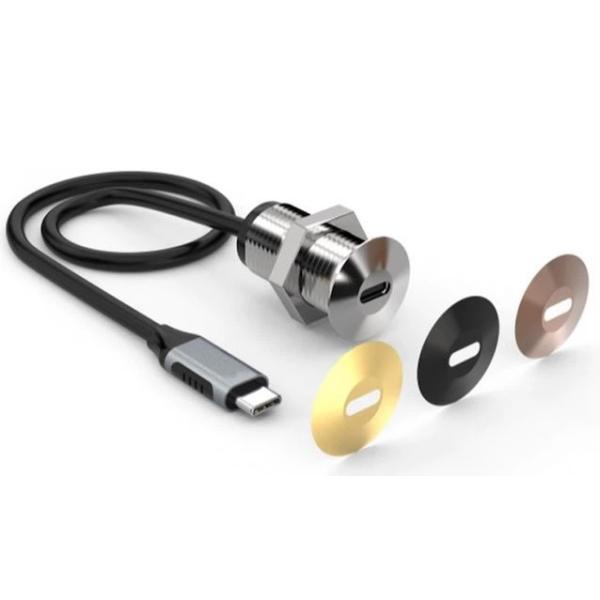

USB C Table Socket:Includes USB C Extension Cable (male to female 0.7 meters). The elegantly designed USB-C table socket enables hiding technology under tables for a clean workspace. Features scratch-free Zinc Alloy finish, supports charging up to 20V/5A (100W), 10G data transmission, and 4K@60Hz video. Compatible with third-party USB-C chargers and connects to USB C HUB DOCK with 1m connecting cable for easy installation through an 18mm hole.
Ideal for Long-Distance and Conference Room Use
This setup supports extended reach installations where standard hubs fall short. Its flexibility and high durability make it perfect for permanent AV installations, shared docking stations, or hidden connectivity points where aesthetics and accessibility are key. Whether managing presentations, streaming conferences, or handling data-heavy tasks, this all-in-one hub ensures seamless, high-performance connections for professional needs.

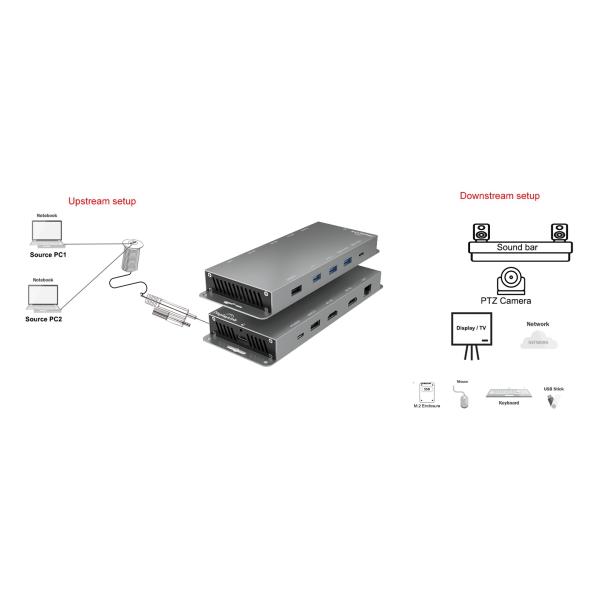

Schematic Diagram
The Model No: UCH022-ProAV_DL6950Awith Host Port USB C Female design is an All-in-One Solution For Dual 4K60Hz UHD Video Conferencing systems. Connect all your equipment just like with a computer docking station. Designed to be fixed under or on top of desks with mounting bracket to support all conference setting connections, ensuring flexibility, convenience, and top-notch performance.
Example Use Cases
- Corporate Meeting Rooms:Connect video bars, PTZ cameras, and peripherals for seamless conferencing. Extend hub closer to displays or cameras for better cable routing. Connect dual displays for enhanced productivity.
- Hybrid Workstations:Supports employees requiring dual monitors for multitasking during remote and in-office work.
- Training and Education:Dual displays provide ideal setup for classrooms allowing simultaneous presentation and notes.
- Home Office Video Conferencing:Perfect for personal setups requiring professional-quality video and networking.
Would you like to explore customization options for market protection, branding, additional features, or packaging? MSLFORCE can help tailor this product to meet market demands.
